Cables & Terminal Box Kits for BMS Testing

For Battery Cell Emulator (BCE), Fault Insertion Unit (FIU), and Temperature Sensor Emulator (TSE)

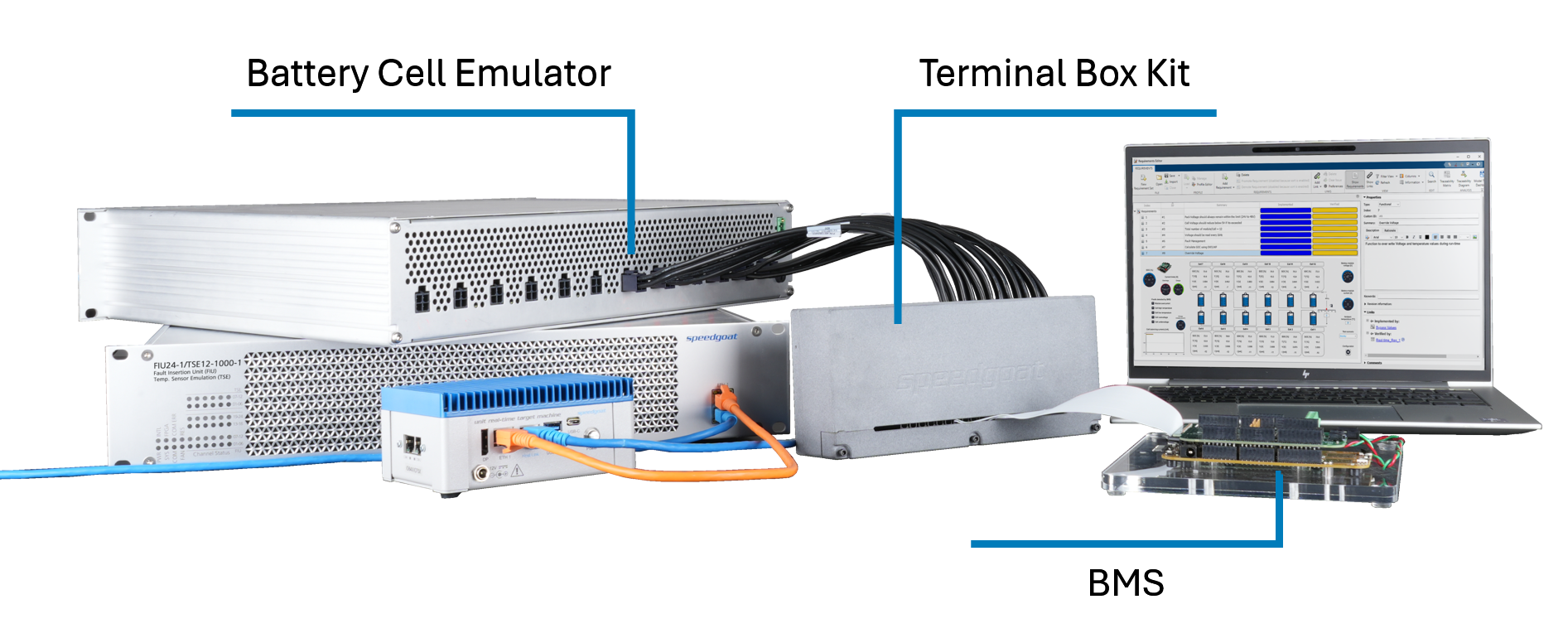

Connect the Speedgoat Battery Cell Emulator (BCE) and Fault Insertion Unit (FIU), or the Temperature Sensor Emulator (TSE) to your devices under test (DUT) using our cables and terminal box kits. The terminal box provides a total of twelve snap-in pluggable connectors, along with twelve 4-wire cables, to connect with your DUT and to connect the box with the BCE/FIU or the TSE.

The kit fully meets safety standards according to IEC 61010-1, ensuring a seamless and safe integration with the Speedgoat Battery Management Testing Solution (BCE/FIU/TSE), and your hardware under test.


Cables & Terminal Box Kits for BMS Testing


  Cables & Terminal Box Kits for BMS Testing Cables & Terminal Box Kits for BMS Testing

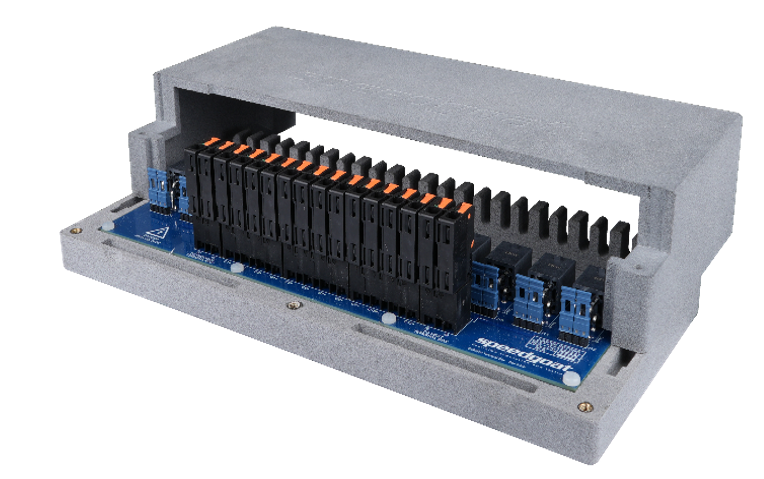

Product Name BCE/FIU Cable and Terminal Box Kit TSE Cable and Terminal Box Kit
Physical
Connector 12 x 4-pin Mega-Fit connectors for cell emulation (Molex part no. 768250004)**

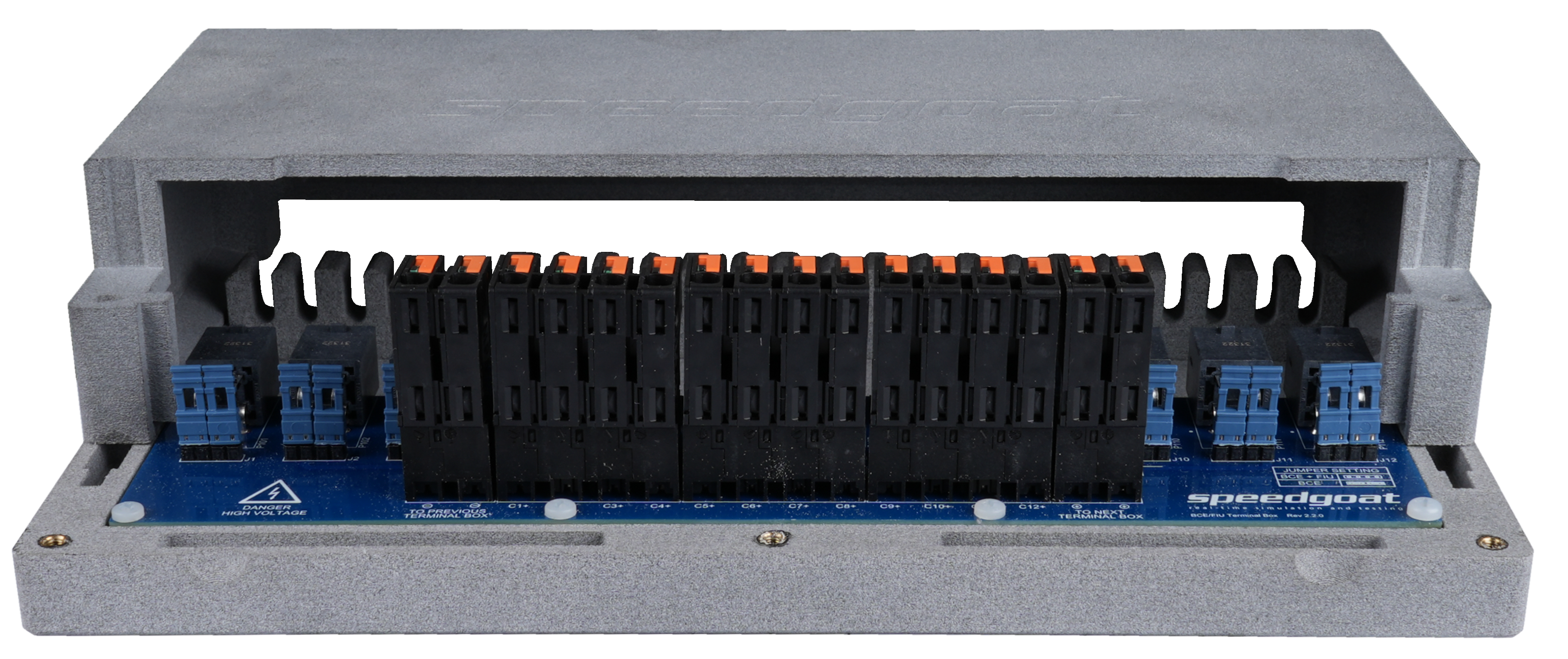

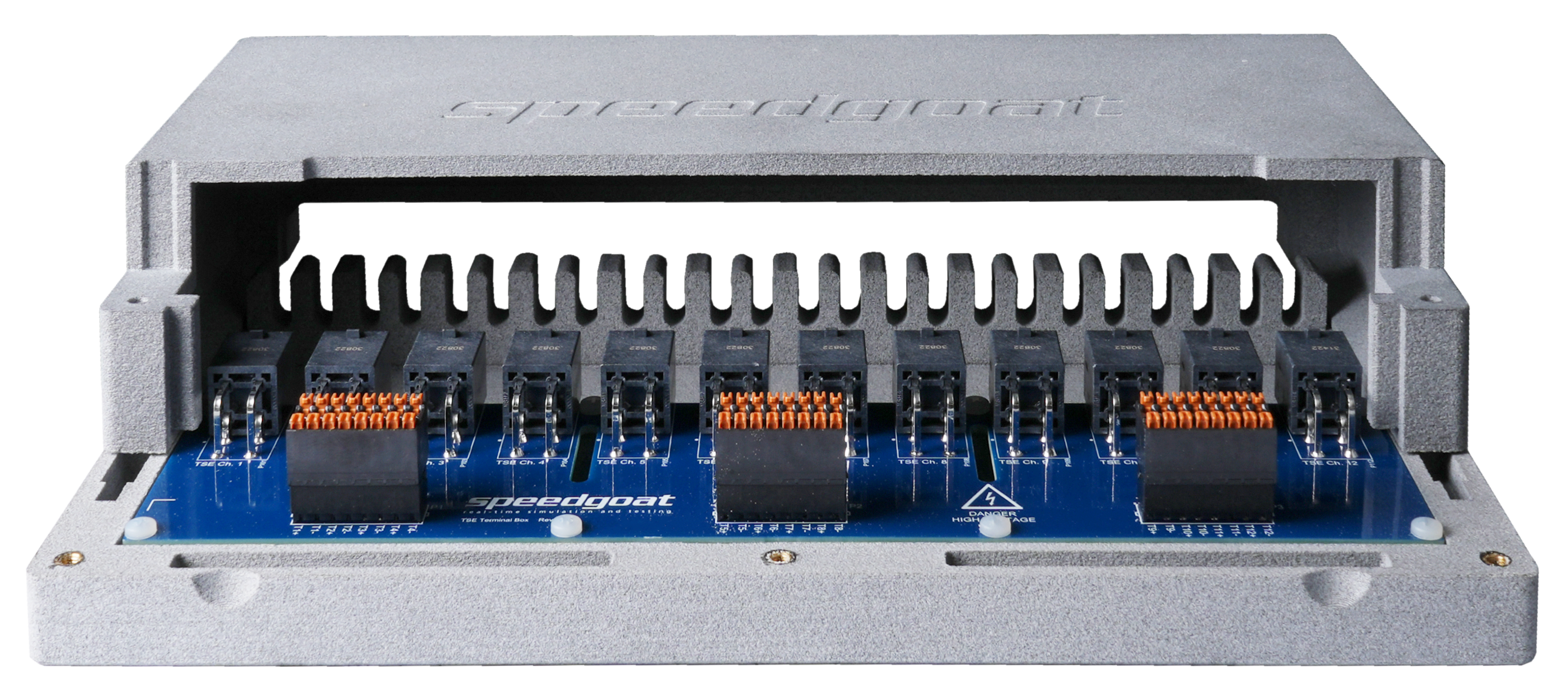

Terminal Blocks 3 x 4-pin pluggable MPS 7S/04 S TN B B terminal block for DUT connection (Weidmüller part no. 8000078330), AWG 20-12 2 x 2-pin pluggable MPS 7S/02 S TN B B terminal block for series DUT connections (Weidmüller part no. 8000078328), AWG 20-12 3 x 8-pin pluggable DFMC 0 5/ 2-ST-2 54 terminal block for DUT connection (Phoenix part No. 1844578), AWG 26-20
Dimensions 233.5 x 105.77 x 60 mm, powder-based 3D printed PA chassis, with DIN-rail mounting kit offered
Weight 630 g 585 g
Installation Orientation Vertical or horizontal, to support desktop and rack integration
Electrical Specification
Wire Range Terminal Blocks 20 to 12 AWG (Stranded or solid wires) 26 to 20 AWG (Stranded or solid wires)
Current* max. 5 mA max. 10 mA
Voltage* max. 10 V max. 20 V
Cell-to-cell isolation 100 V
System Voltage System voltages up to 1.3 kV can be realized
Functional
  • Channels are connected in series and allow connecting multiple BCEs.
  • Sense and BAT lines are shorted by jumper placement, remove jumper if FIU is used
  • Channel to channel connection
*To avoid damage, please respect the maximum BMTS product current and voltage parameters.
** The 12 x Mega-Fit-to-Mega-Fit cable, 1 m length are included and are not considered for dimensions and weight.
Item ID Product Name Description
30101Z BCE/FIU Cable and Terminal Box Kit 12x 4-pin Mega-Fit cables to connect the battery cell emulator or fault insertion unit with the terminal board. 1x 12-channel terminal board featuring pluggable terminal blocks for AWG16-24 wires interfacing with the device under test. Compatible with Battery Cell Emulator (BCE) and Fault Insertion Unit (FIU).
30102Z TSE Cable and Terminal Box Kit 12x 4-pin Mega-Fit cables to connect the battery cell emulator or fault insertion unit with the terminal board. 1x 12-channel terminal board featuring pluggable terminal blocks for AWG16-24 wires interfacing with the device under test. Compatible with Temperature Sensor Emulator (TSE).
