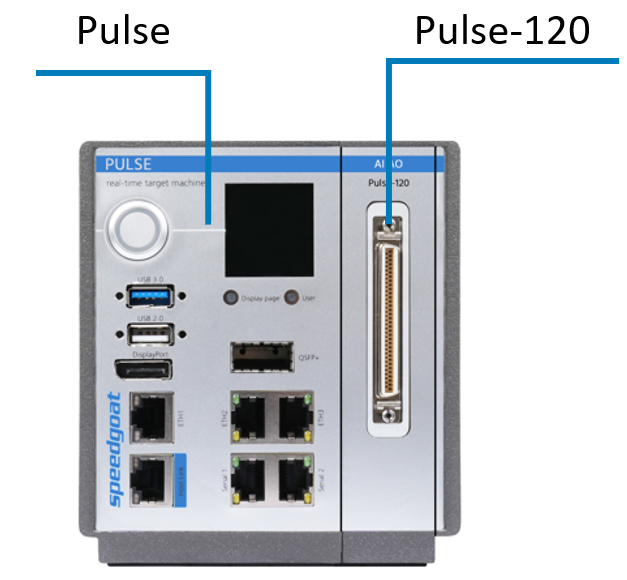

The Pulse-120 enables simultaneous high-speed sampling and generation of analog signals for component/sub-system-level controller testing and control design prototyping. Designed as an analog I/O interface extension for the Pulse Real-Time Target Machine, it features 16x inputs at up to 1.5 mega samples per second (Msps) and 16x outputs at up to 10 mega updates per second (Mups).
You can enable motor controls testing and other power electronics applications by complementing it with other I/O interface extensions to form complete closed-loop test setups.
Use the test setup to run real-time applications with sampling rates up to the MHz range using the Simulink-programmable workflow and up to 100 kHz, with the configurable workflow.
Key Features
- 16x Analog inputs with up to 1.5 Msps sampling rate.
- 16x Analog outputs with 16-bit Resolution and up to 10 Mups update rate
- Closed-loop sample rates in the MHz range
- High-frequency signal generation
- High-frequency acquisition and simultaneous conversion of multiple signals
