Choose the interface for your Configurable I/O modules and Simulink Programmable I/O modules. Extend the interface using I/O interface extensions if needed.

Find below, the I/O connectivity options you can leverage using the I/O interfaces, while preserving the fast closed-loop sample rate of your real-time application.

The I/O connectivity provided by the I/O interface and the I/O interface extension is represented by Simulink driver blocks.

perf copy-4-1

I/O Interface

Select the I/O interface for your I/O module of the IO33X- and IO34X-series.

For the IO33X I/O modules, you can choose only one of the following I/O interfaces.

For the IO34X I/O modules, you may choose up to two I/O interfaces. Note, the second I/O interface option takes up an additional I/O slot in your test system.

Compatible test systems:

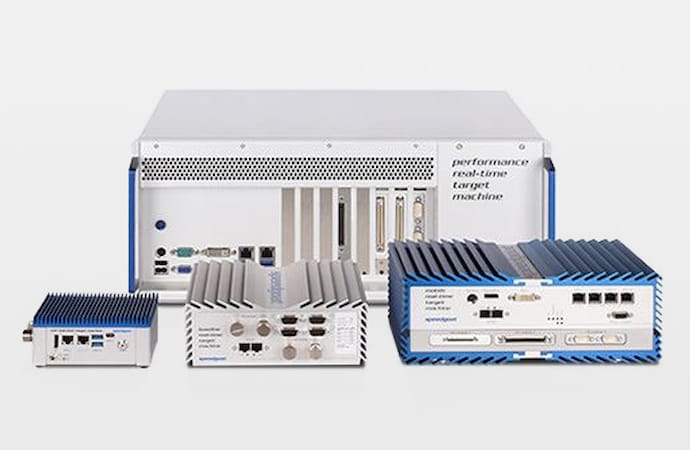

P - Performance | B - Baseline | M - Mobile | U - Unit real-time target machine

I/O Interface	Target Machine	I/O connectivity	Supported I/O module
IO33X-1-LV	P, B, M	64x LVTTL	IO332, IO333
IO33X-2	P, B, M	30x RS485	IO332, IO333
IO33X-3	P, B, M	16x CMOS 22x RS485	IO332, IO333
IO33X-4	P, B, M	30x LVDS	IO332, IO333
IO33X-6	P, B, M	16x Analog Input 8x Analog Output 16x TTL	IO332, IO333
IO34X-51	P	2x QSFP	IO342
IO34X-63	P	4x Analog Input 4x Analog Output	IO342

I/O Interface Extension

Expand the capabilities of your I/O modules or the Pulse test system with I/O interface extensions. These connect via high-speed digital or Multi-Gigabit Transceiver (MGT) lines, allowing you to add extra functionality. Depending on the module or system, one or more extensions can be added.

Compatible test systems:

P - Performance | B - Baseline | M - Mobile | U - Unit real-time target machine

I/O Interface Extension	Target Machine	I/O connectivity	Supported I/O module
-21	P, PL, B, M	56x TTL	IO316, IO317, IO318, IO324, IO325, IO332, IO333, IO333-SFP, IO334, IO335, IO336, IO337, IO342, IO344, IO352*
-22	P, PL, B, M	24x TTL 16x RS422/RS485	IO316, IO317, IO318, IO324, IO325, IO332, IO333, IO333-SFP, IO334, IO335, IO336, IO337, IO342, IO344, IO352*
-24	P, PL, B, M	2x Resolver Measurement channels 40x TTL 8x RS422/485	IO324, IO325, IO332, IO333, IO333-SFP, IO334, IO335, IO336, IO337
IO3XX-32	P, B, M	4x MGT	IO325, IO332, IO333, IO333-SFP, IO334, IO335, IO336, IO337, IO342, IO352
Pulse-120	PL	16x Analog Input 16x Analog Output	-
