IO342 Simulink-Programmable FPGA I/O Module

IO342

Simulink^®-programmable FPGA I/O module

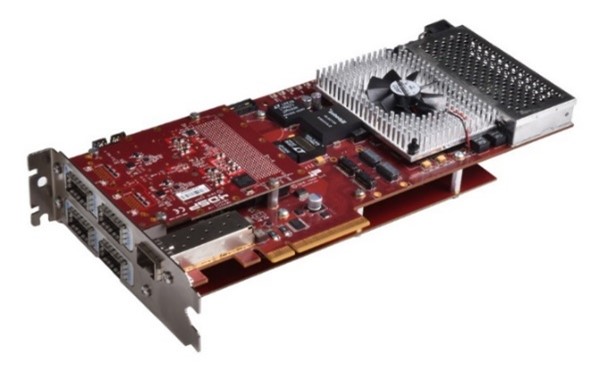

The IO342 is an FPGA I/O module capable of low-latency connectivity and high-frequency closed-loop sample times. The I/O module features a high-speed memory, up to 43 multi-gigabit transceivers (MGT), a PCIe interface and a FPGA chip with up to 1.45 M logic cells. Up to two I/O interfaces determine the analog and digital I/O functionality available.

This I/O module comes as a Simulink^®-programmable FPGA.

Key Features

Closed-loop sample rates of up to 100 MHz
High-frequency acquisition and signal generation
Analog and digital inputs and outputs
High-speed communication protocols
Simulink^®-programmable FPGA workflow to use HDL Coder™ and Simulink^® Real-Time™ supported by the Speedgoat HDL Coder™ Integration Package


Physical
Form factor	PCle Card
Power requirements	3.3 V (±5 %): 3 A per FMC I/O interface typical 12 V (±5 %): 1 A per FMC I/O interface typical VADJ (0 – 3.3 V): 4 A per FMC I/O interface typical
Bus	PCI Express x4 Link (Base Specification 2.1)
Connectors	SFP+ 10 Gbps PCIe Edge Connector 2x Firefly^® Connectors 1/2 FMC Connectors
Environmental
Operating temperature	0 °C to +55 °C
Relative humidity	5 to 95%, non-condensing
Certification	AS9100
FPGA
FPGA chip	AMD^® Kintex^® UltraScale
Speedgoat product name	IO342-1450k/IO342-1080k
Logic cells	1451100/1088325
CLB flip-flops	1326720/995040
DSP Slices	5520/4100
Block RAM blocks	2160/1620
Block RAM	75.9 Mb/56.9 Mb
GTY Transceivers	43/35
MGT	GTY Transceivers (up to 16 Gb/s Max Rate)
PCIe Endpoint	8 MGT on PCIe Edge Connector
Inter-module communication	8 MGT on the Firefly Connectors and 1 MGT on the SFP+ Cage
FMC Routed MGT	24 MGT on the Primary FMC Site and 10/4 on the Secondary FMC Site
Digital I/O
MMCX	2x MMCX coaxial connectors
GPIO Plugin	Supports access to the QSE-020 connector with 9 differential GPIOs
I/O Interfaces

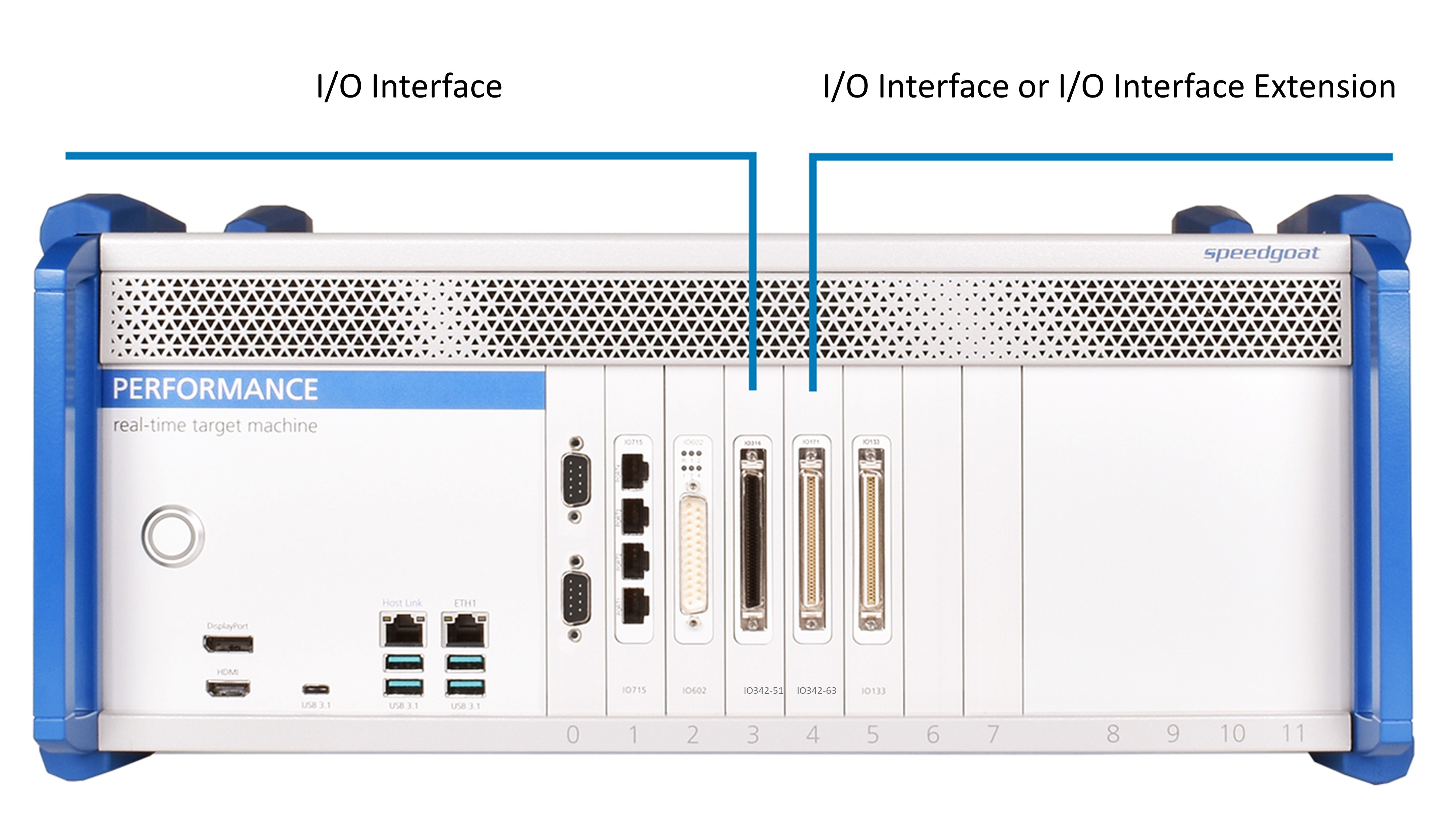

I/O Interface

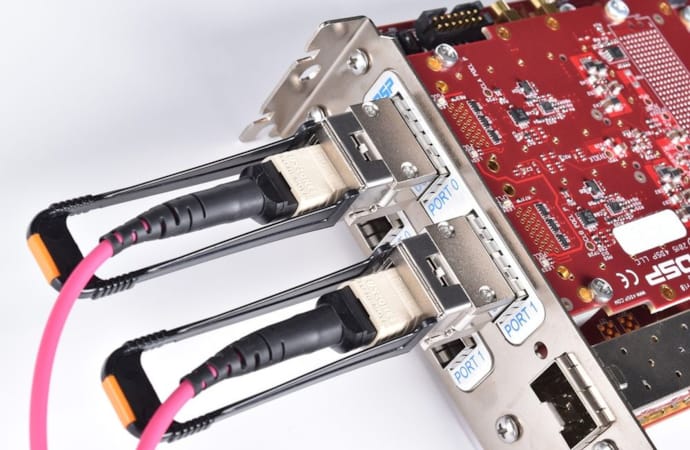

IO342-51	I/O interface with 2x QSFP+ connectors supporting a total of 8 MGT channels
IO342-63	I/O interface with 4x 16-bit analog inputs supporting up to 1 Gsps, and 4x 16-bit analog outputs supporting up to 1 Gsps
I/O Interface Extension
IO342-21	14x 3.3 V/5 V TTL I/O lines
IO342-22	6x 3.3 V/5 V TTL I/O lines and 4x RS422/RS485 I/O lines
IO342-32	Signal-conditioning I/O module provides access to 4x MGT I/O lines with 4x SFP+ cages

Item ID	Product Name	Components
2A3426	IO342-1.08M-1FMC	1x IO342 I/O module with Kintex UltraScale FPGA with 1.08 M logic cells, and support for one FMC slot Driver block library for Simulink^® Real-Time™ Simulink^® test models Comprehensive documentation and Simulink^® example models Installation into the real-time target machine
2B3426	IO342-1.45M-1FMC	1x IO342 I/O module with Kintex UltraScale FPGA with 1.45 M logic cells, and support for one FMC slot Driver block library for Simulink^® Real-Time™ Simulink^® test models Comprehensive documentation and Simulink^® example models Installation into the real-time target machine
2C3426	IO342-1.08M-2FMC	1x IO342 I/O module with Kintex UltraScale FPGA with 1.08 M logic cells, and support for two FMC slots Driver block library for Simulink^® Real-Time™ Simulink^® test models Comprehensive documentation and Simulink^® example models Installation into the real-time target machine
2D3426	IO342-1.45M-2FMC	1x IO342 I/O module with Kintex UltraScale FPGA with 1.45 M logic cells, and support for two FMC slots Driver block library for Simulink^® Real-Time™ Simulink^® test models Comprehensive documentation and Simulink^® example models Installation into the real-time target machine
I/O Interfaces
2P342	IO342-51	1x IO342-51 1x IO342-51 I/O interface with 2x QSFP+ connectors supporting a total of 8 MGT channels Installation onto the IO342 I/O module
2O342	IO342-63	1x IO342-63 1x IO342-63 I/O interface with 4x 16-bit analog inputs at 1 Gsps and 4x 16-bit analog outputs at 1 Gsps Installation onto the IO342 I/O module
HDL Coder Integration Package
3A32IP	IO342 HCIP	IO342 HDL Coder™ Integration Package HDL Coder™ integration for all the interfaces of the I/O interfaces available for this module
